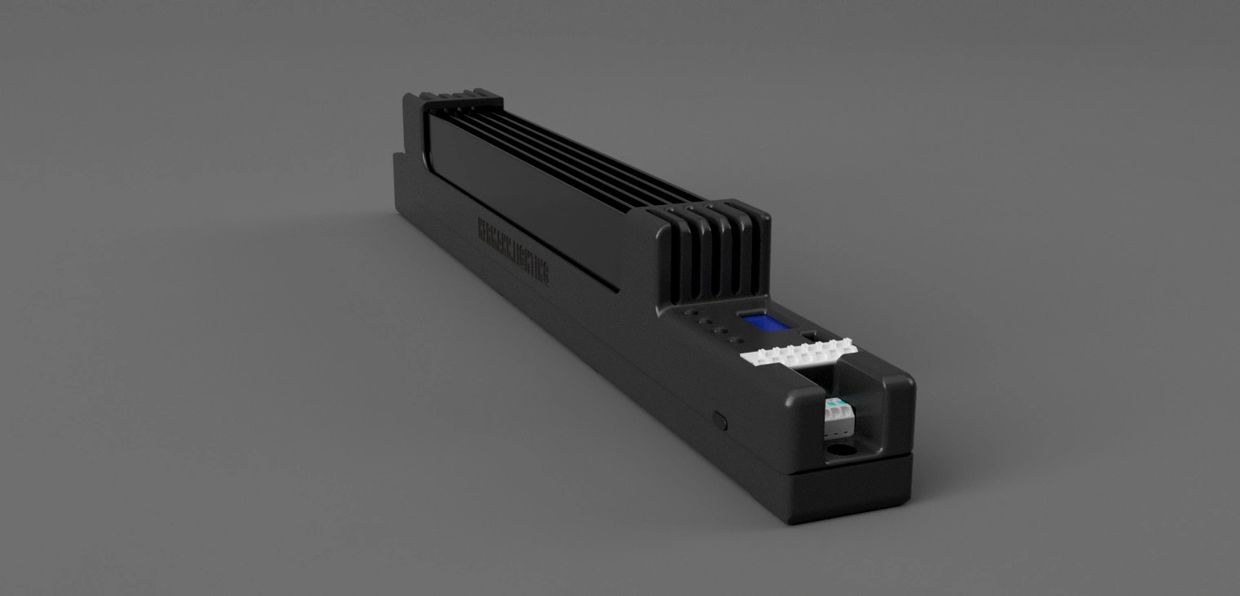

HERMANN ADRV II.

Input voltage:                         12-60V DC

Input current:                         10mA - 10A

Input voltage = LOAD/LED voltage,

typically 12V, 24V, 36V, 48V, 54V

Number of channels:            5

Channel current:                   100µA – 10A

Isum max:                              10A

System power:                      200W passive

                                               400W cooled

Various channel options:

(1x RGBWW)/ (1x RGB+1xWW/CW) / (2x WW/CW) / (5x 1-single)

Resolution:                            28 bit

Dynamic range:                    1:100,000

(0.01%@1Amax., 0.001%@10Amax.)

Control type:

Constant current, no PWM, 0% flicker

Efficiency:

 n=99%@100%LED, n=80%@20-50%LED,

applies to I_LED_max = 100mA – 10A

Types of loads:                     CV loads.

All loads that are explicitly designed for constant voltage.

                                              CV LED stripes

(12Vdc, 24Vdc, 36Vdc, 48Vdc up to 60Vdc)

Load capacity:                     0-10A

All capacities up to 10 A input current at the specified voltage

Length of CV LED strip:       Any length

No minimum, no maximum length.

Peripheral functions

Color correction sensor:

Automatic color correction compensates for color shifts in LEDs due to changes in current and temperature.

External sensors/actuators:

Interface for external sensors such as color sensors, ambient light sensors, temperature sensors, voltage sensors, current sensors, up to 200 m

Protection modules:

Overtemperature (OTP):

Programmable forced dimming at >40-100 °C system temperature, internal + external temperatures

Monitoring (OVP/OCP):

Input voltage, output voltages, output currents, internal + external voltages + currents

Alarm messages:

Programmable alarm messages via network connections and acoustic feedback

Configuration options:

1. Automatic mode

2. OLED display + 4 buttons + acoustic feedback

3. USB-C interface + PC/ Smartphone

4. Mobile app

Installation guide:

Instructions for installers via OLED display.

Interfaces:

DALI optically isolated, Integrated BUS power supply module with 250mA output current

KNX  optically isolated, Integrated BUS power supply module with 640mA output current

DMX optically isolated

Radio modules optional (Zigbee, Z-Wave, Thread/Matter, WiFi, Bluetooth, DECT)

Proprietary subnetwork:

RS-485 interface and power supply for integrating external sensors and actuators up to 200m

Dimensions:                         L=460 mm,

                                             W=44 mm

                                             H=70 mm

Weight:                                1001g

Order acceptance:              Immediately

Availability:                           May 2026
